Bus System Replacement Parts

Bus Bar Bellows Replacement

Ensure efficient and safe bus duct operation with rectangular bus bar bellows replacements
bar bus bellows, gasket materials, bus duct parts, medium voltage bus system replacement parts

601-939-9191 x2361

To order, please contact our Parts Coordinator Monday – Friday 7am-3:30pm CST

A bus bar bellows replacement will improve efficiency and extend equipment life

Description

A rectangular bus bar bellows replacement is essential for maintaining the functionality and safety of electrical systems in non-segregated and segregated phase bus duct applications. These bellows provide flexibility, absorb thermal expansion, and accommodate misalignment, ensuring smooth and safe operation of bus ducts. Regular replacement enhances safety, improves efficiency, and extends equipment life.

Notes:

  • Material: Neoprene/Nylon or Goralon
    0.018″ Thick Outer Liner
    0.018″ Thick Stiffener
    0.010″ Thick Inner Liner
    0.046″ Total Thickness
  • Bellows to allow for 1″ of misalignment on X, Y & Z axis simultaneously
  • Number of convolutions may vary from what is shown because of length required

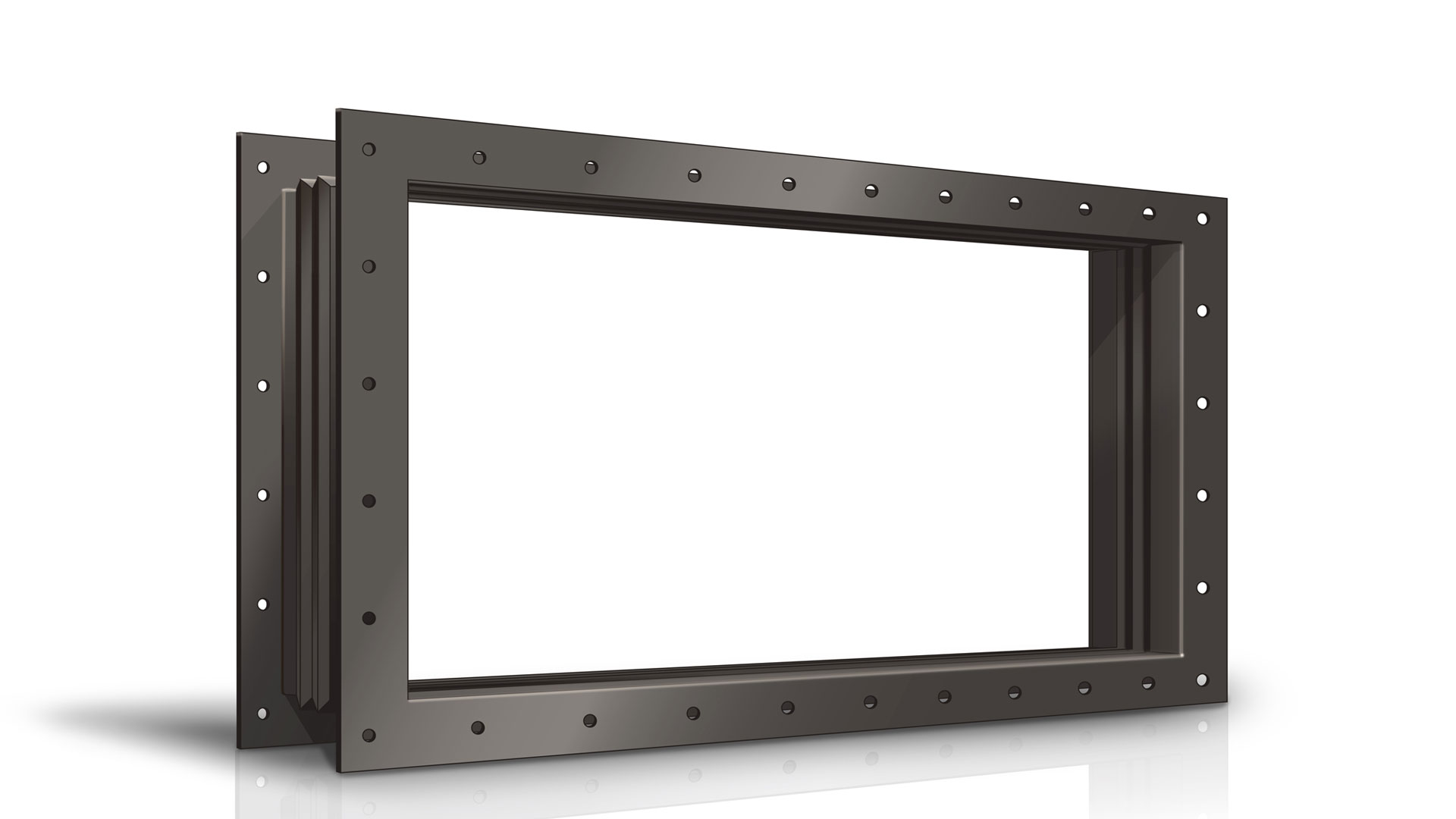

bus bar bellows replacement
