MLS LED

Low-profile stainless-steel LED linear lighting provides corrosion-resistance in harsh environments

Industry
Industrial | Marine | Oil Field
Type
LED
Luminaire
Industrial | Linear

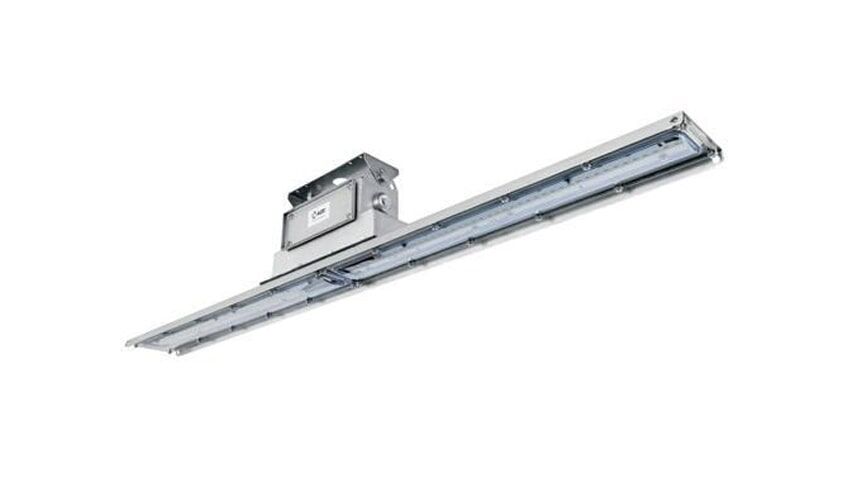

The MLS LED linear light offers low-profile, stainless steel lighting for harsh environments. It features field-replaceable LEDs, toolless entry, and adjustable brackets for flexible installation. Impact-resistant lenses, 10kV surge protection, and emergency backup options ensure reliable performance in demanding applications.

Standard Features:

  • Low-profile, lightweight design
  • Integral safety cable attachment points
  • Toolless, cage-clamp terminal block
  • Captive junction box cover, attached by nylon-coated stainless steel cable
  • Field replaceable LED circuit boards and drivers with quick disconnects
  • Adjustable mounting bracket with 60° range of motion and nine locking positions*
  • Impact resistant clear lens

Additional Features:

  • Central safety cable attachment points for increased safety/reduced range of motion
  • Feed-through capable
  • Optional end brackets for chain mount applications
  • Emergency battery back-up
  • Diffused lens option
  • Standard 10kV surge protection
  • 5-year warranty

Classifications:

  • UL 1598A marine inside type
  • UL 1598 wet locations
  • UL 8750 LED safety
  • UL 924 emergency lighting
  • CSA C22.2 No. 250.0-08
  • IP66
  • NEMA 4X
  • Tested to LM79, LM80 standards
  • Build America, Buy America Act (BABA) compliant
  • Buy American Act (BAA) compliant

Standard Materials:

  • Body: Type 304 stainless steel, optional type 316
  • Driver body: Type 304 stainless steel, optional type 316
  • Gaskets: one-piece neoprene
  • Optional end brackets: stainless steel
  • Lens: polycarbonate
  • Hardware: stainless steel



Note: The MLS LED is rated for non-hazardous locations. For hazardous areas, see the MHLS LED

Contact Us

Request More Information

Request More Information

To receive a quote or request additional information, please complete the form below and we will contact you as soon as possible. Fields marked with an asterisk (*) are required.


Product Details

Downloads

Follow RIG-A-LITE

You may also like:

MHL LED

MHL LED

Explosion proof low-profile LED linear lighting ensures reliable performance in hazardous locations

MHLS LED

MHLS LED

Explosion proof stainless-steel low-profile LED linear lighting for extreme and hazardous locations

ML LED

ML LED

Low-profile LED linear lighting ensures reliable performance in harsh environments

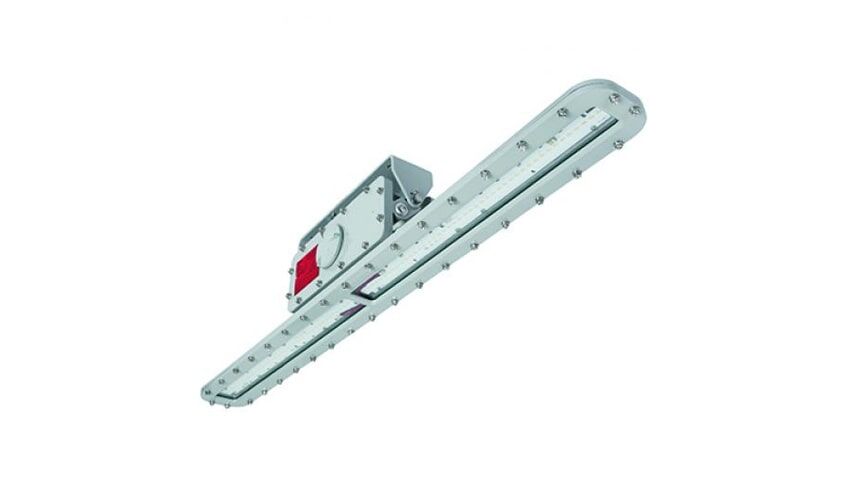

XML LED
