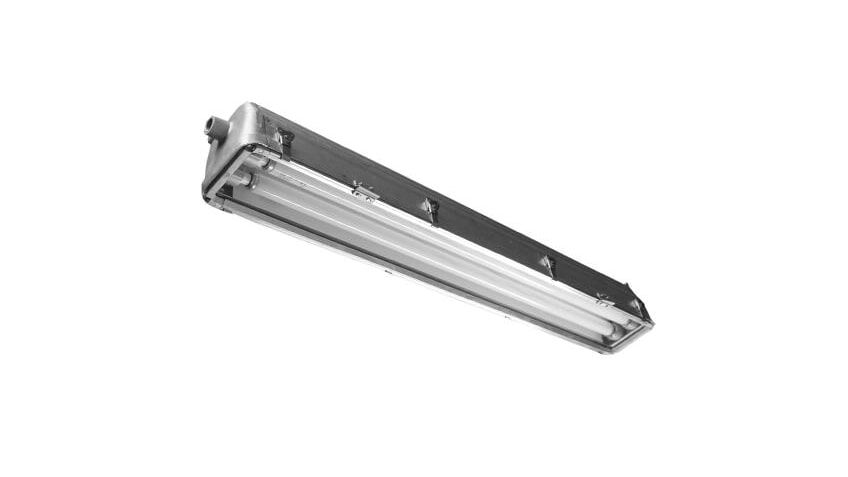

MAR2 LED
Hazardous-rated LED linear lighting for marine applications and challenging environments
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Hazardous-Rated | Industrial Lighting | Linear
Classification
The MAR2 LED linear light provides durable, hazardous-rated location lighting with a heavy-duty, low-profile design and 360° mounting flexibility. It features field-replaceable LED components, a watershed design, and 10kV surge protection, making it ideal for challenging environments and industrial settings.
Standard Features:
- Heavy-duty .094″-thick extruded housing
- Permanent safety cable attachment points
- Two 3/4″ NPT conduit hubs
- 360° mounting flexibility
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Toolless entry via twist-lock latches
- Watershed design
Additional Features:
- Standardl 10kV surge protection
- Offset mounting bracket enables flush mounting
- Dimmable driver
- Low-profile design
- Optional pre-wired feed-through
- 7-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C & D
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- UL 844 hazardous locations
- CSA C22.2 No. 250.0-08
- CSA C22.2 No. 137-M1981
- Tested to LM79, LM80 standards
- ETL listed
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- 55°C ambient temperature
Standard Materials:
- Body: 5052-H32 aluminum (less than .4% copper content)
- Gaskets: one-piece silicone
- Lens: acrylic
- Latches: stainless steel
- Hardware: stainless steel
Contact Us
Product Details
Lumens: 5,476-7,660
Approximate Shipping Weight: 26-36 lbs*
