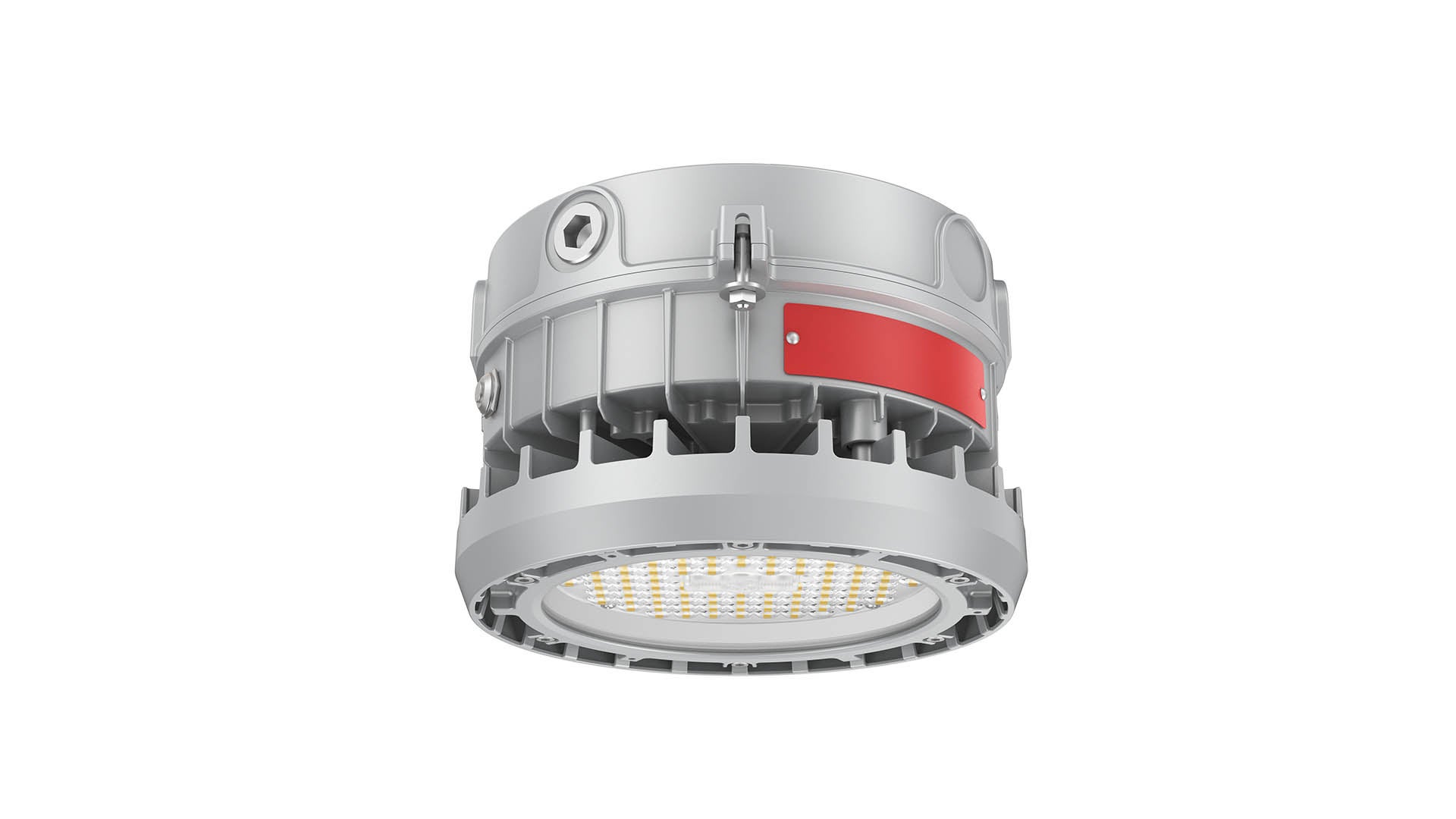

EXA10 LED

EX-Series explosion-proof LED low-bay lighting for hazardous-rated locations

Industry

Industrial | Oil Field | Wastewater Treatment

Type

LED

Luminaire

EX-Series | Explosion Proof | Hazardous-Rated | Industrial Lighting | Low-Bay Lighting

Classification

IEC/ATEX | IECEx

The EXA10 LED, part of the RIG-A-LITE EX-Series, delivers IECEx and ATEX-certified explosion-proof lighting for hazardous-rated environments. Built for installations in the Middle East, North Africa, Southeast Asia, and other regions requiring ATEX/IECEx certification, the EXA10 offers reliable low-bay jelly jar lighting in demanding conditions.

Please note: Not for installations in North America.

Standard Features:

Available in 30W, 40W, 50W, 60W, and 75W options, with a maximum luminous efficiency of 160 Lm/W
Warm white to cool white (2000K-6500K) and colored LEDs (R/G/A) are available
Type I, III, 60° and 90° light distribution options
Special optical design with curved glass allows for upward light distribution greater than 8%
Features a dip switch for power adjustment
Optional protective wire guard, safety cables, cone top, and fuse are available
Available configurations include emergency, dimming, and emergency dimming
Multiple installation options to meet different needs: ceiling pendant, wall, pole, or trunnion mount
Dimming methods include 1-10V and 0-10V

Classifications:

Zone 2
Zone 21, Zone 22
IECEx approvals
• Ex nR IIC T6/T5 Gc
• Ex tb IIIC T80 C/T95 C Db IP66
ATEX approvals
• II 3G Ex nR IIC T6/T5 Gc
• II 2D Ex tb IIIC T80 C/T95 C Db IP66
IP66
IK08
