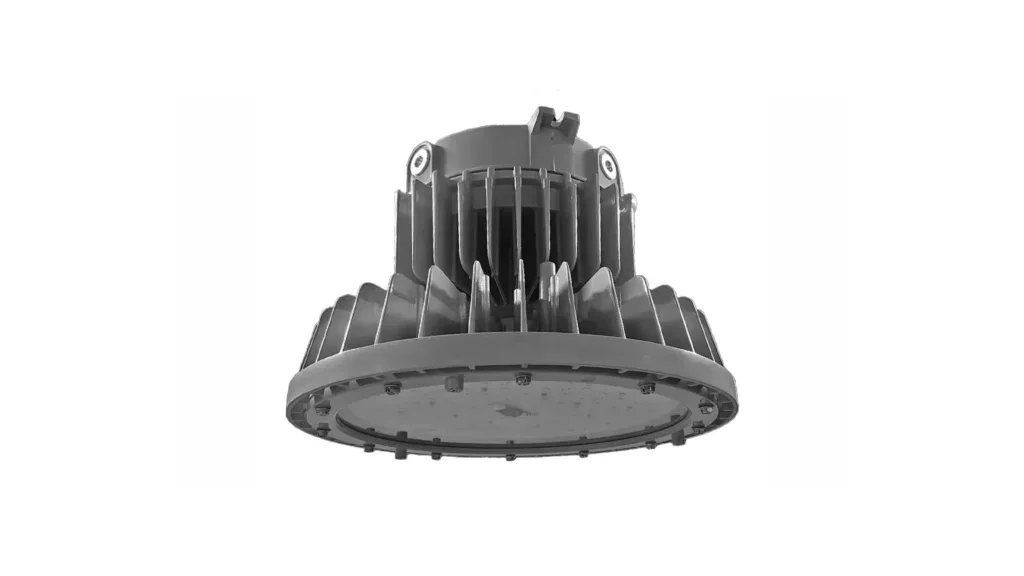

HZALJ Hi-Lumen LED
Hazardous-rated hi-lumen LED area lighting for challenging environments
HZALJ Hi-Lumen LED
IALJ Hi-Lumen LED
Hi-lumen LED area lighting engineered for harsh-rated locations
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Area | Heavy Duty Harsh-Rated | Industrial Lighting
Classification
The IALJ Hi-Lumen LED light delivers heavy duty illumination for tough environments. Its low-profile design, interchangeable optics, and field-replaceable components ensure superior performance, flexible mounting options, and durable construction for wet, marine and harsh-rated locations.
Standard Features:
- Low profile body, less than 11” high
- Interchangeable optics with Type I, III, V and wide distribution options
- Spring pressure connection terminal block
- Field replaceable LED circuit boards and drivers with quick disconnects
- Hinged mount for access to internal components
- Optional trunnion mount with locking positions in 15 degree increments
- Two (2) safety cable attachment points
Additional Features:
- Pendant, ceiling, wall, trunnion and stanchion mounting options
- Mates directly to select competitor mounts
- Dimming option
- Optional Type 316 stainless steel guard
- Standard 10kV surge protection
- 7-year warranty
Classifications:
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- CSA C22.2 No. 250.0-08
- CSA C22.2 No. 137-M1981 (R2104)
- IP66
- NEMA 4X
- ABS type approved
- Tested to LM79, LM80 standards
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- -40°C to 65°C ambient temperature
- Factory sealed
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: One-piece silicone
- Lens: Tempered glass or polycarbonate
- Hardware: Stainless Steel
Note: The IALJ Hi-Lumen LED is rated for non-hazardous locations. For hazardous areas, see the HZALJ Hi-Lumen LED
