EXA05 LED
EX-Series explosion-proof LED area lighting for hazardous-rated locations
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Area | EX-Series | Explosion Proof | Hazardous-Rated | Industrial Lighting
Classification

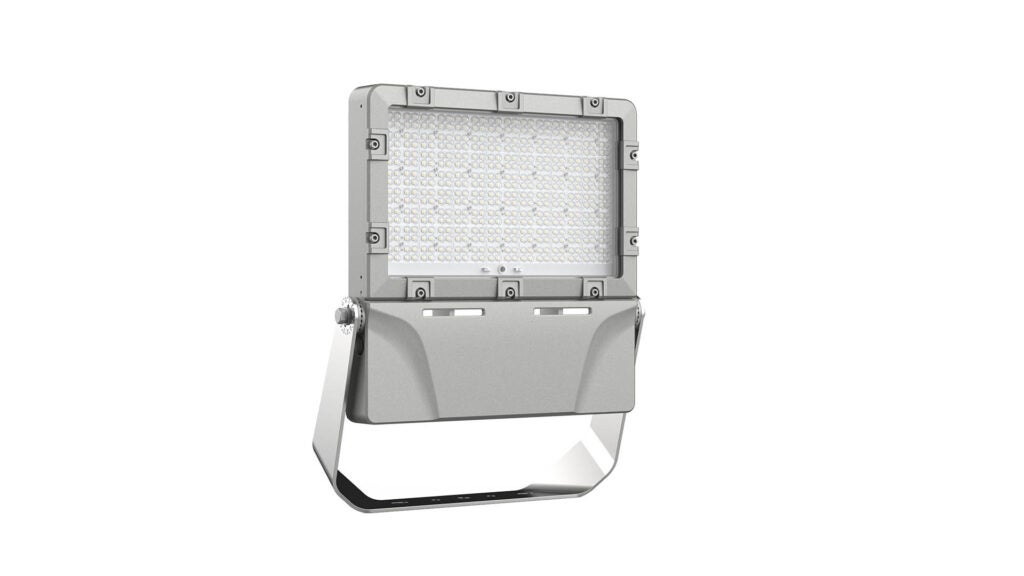

The EXA05 LED, part of the RIG-A-LITE EX-Series, delivers IECEx and ATEX-certified explosion-proof lighting for hazardous-rated environments. Built for installations in the Middle East, North Africa, Southeast Asia, and other regions requiring ATEX/IECEx certification, the EXA05 offers reliable area lighting in demanding conditions.
Please note: Not for installations in North America.
Standard Features:
- Available in 30W, 50W, 75W, 100W, 120W, 150W, 180W, 200W, 240W
- Input voltage: AC100-277V, AC 277-480V (50/60Hz)
- Pendant, ceiling, wall, trunnion, 25° stanchion, and 90° stanchion mounting options
- Type I, III, and V light distribution options
- Max operating temperature range: -40°C to 65°C
- Optional stainless steel guard
- Flip-type structure for easy access to internal components
- Die-cast aluminum body and frame
- Corrosion resistant, rugged construction ensures long life and safe operation
- Provides up to 1620 lumens illumination for 90 minutes or 720 lumens illumination for 3 hours of emergency lighting
Classifications:
- Class I, Division 2, Groups A, B, C & D
- Class II, Division 1, Groups E, F & G
- Class II, Division 2, Groups F & G
- Class III
- IECEx approvals
• Ex nR IIC T6/T5 Gc
• Ex tb IIIC T80 C/T95 C Db IP66 - ATEX approvals
• II 3G ExnR IIC T6/T5 Gc
• II 2D Ex tb IIIC T80 C/T95 C Db IP66 - UL 844 hazardous locations
- UL 1598A marine outside type
- IP66
- IK08
