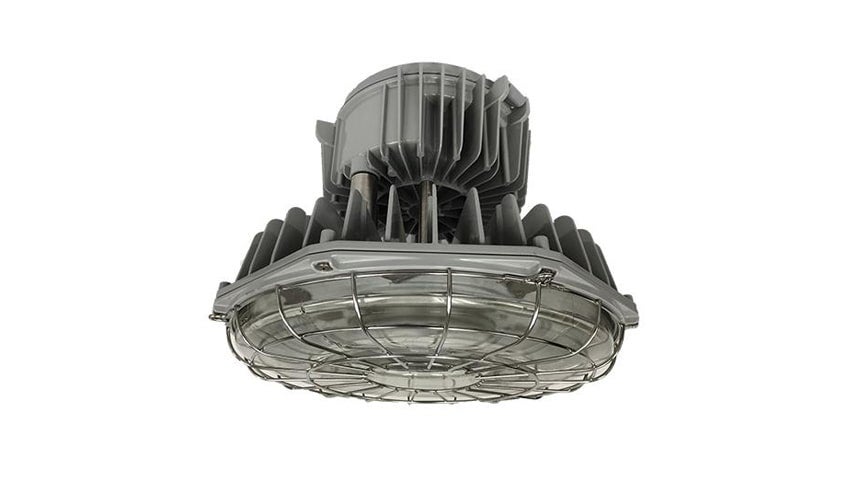

SAFJ Hi-Lumen LED
LED area lighting for hazardous locations
Industry
Industrial | Oil Field
Type
LED
Luminaire
Area
Class
Class I, Division II | IEC/ATEX
Standard Features:
- Wide distribution pattern with uplight
- Field replaceable LEDs and drivers
- Hinged mount for easy access to internal components
- Isolated LED compartment reduces temperature within driver housing
- Unique design enhances airflow for greater heat dissipation
- Heavy-duty tempered glass lens
- Type I, III and V light distribution options
Additional Features:
- Standard 10kV surge protection
- Pendant, ceiling, wall and stanchion mounting options
- Terminal block
- Mates directly to SAFJ HID and select competitor mounts
- Dimming option
- Optional stainless steel guard
- 5-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C, and D
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
- UL 844 Hazardous Locations
- UL 8750 LED Safety
- Tested to LM 79 & LM 80
- Up to 65° C Ambient Temperature
- NEMA 4X
- IP66
- CUL
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: One-piece silicone
- Lens: Borosilicate Glass
- Hardware: Stainless Steel
